N.B. Image may vary with product

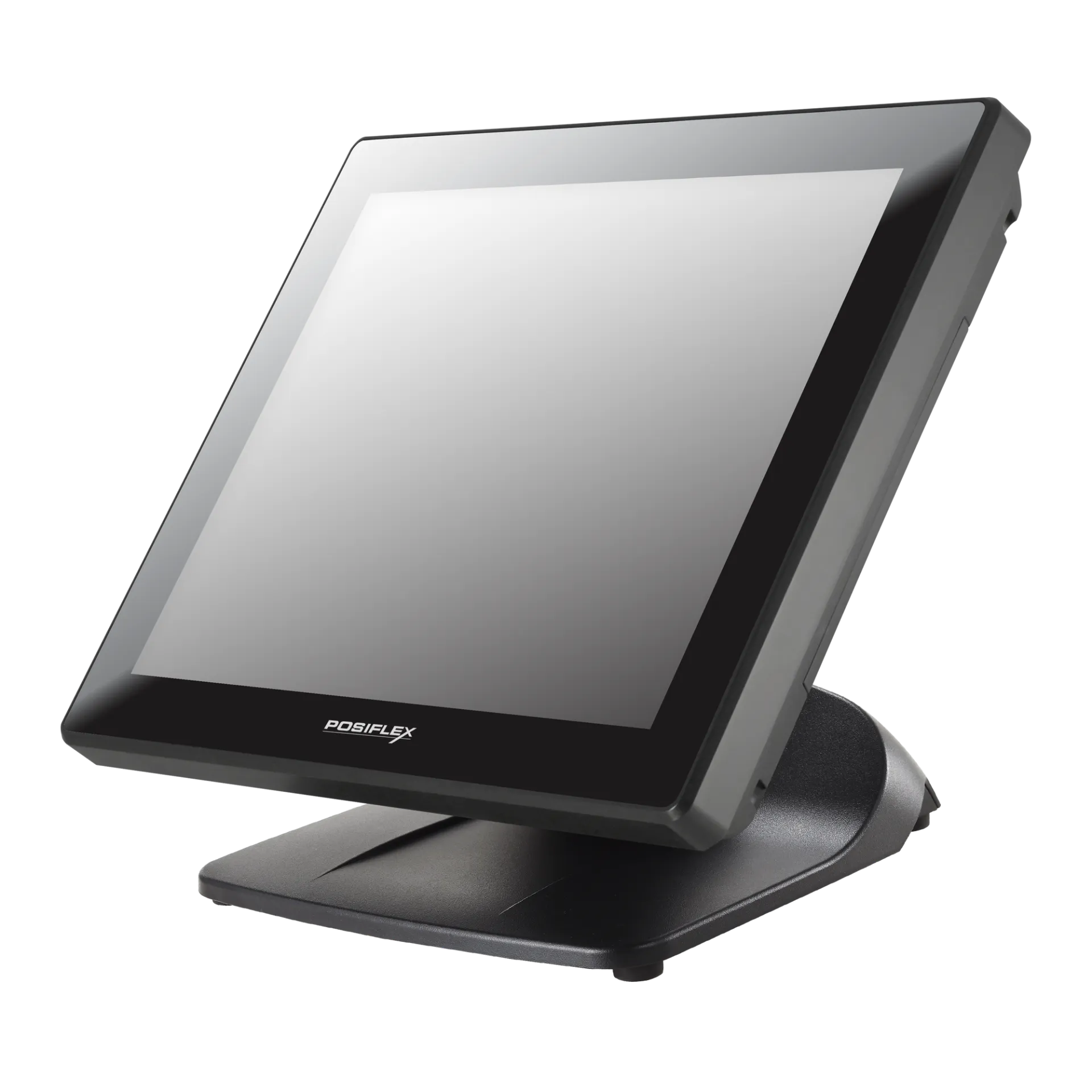

The Posiflex PS-3615-G2 is an intelligently designed touch screen POS terminal that combines advanced performance with space-saving flexibility. Featuring the Intel® Elkhart Lake Celeron J6412 processor, this compact terminal is tailored for use in dynamic retail environments where performance, durability, and efficient use of space are essential.
Intelligently Designed for Versatility
The PS-3615-G2 comes equipped with an adjustable base, offering users ultimate flexibility for space-limited environments. Whether you're operating in a compact retail space or a busy point of sale setting, this POS terminal adapts seamlessly to your needs, ensuring both comfort and accessibility for the user.
Expanded Connectivity for Enhanced Usability
Designed with extensive connectivity options, the PS-3615-G2 places a full set of ports at the top of the terminal. This layout ensures easy access to all necessary connections and reliable peripheral cabling, making it simple to integrate with a variety of devices and accessories.
Compact and Powerful Performance
Powered by the Intel® Elkhart Lake Celeron J6412 processor, the PS-3615-G2 delivers impressive performance, handling retail operations with ease. With a 15" TFT LCD display and True-flat PCAP touch technology that supports multi-touch functionality, this terminal offers a high-quality, user-friendly interface perfect for fast-paced retail environments.
The PS-3615-G2 is not only a powerful addition to any retail space but also a highly flexible and space-efficient solution for any business needing a reliable, high-performance POS terminal. Whether you're dealing with high-volume transactions or managing inventory, the PS-3615-G2 is designed to perform seamlessly and reliably in demanding retail and business environments.
| Configuration | PS-3615-G2 |
|---|---|
| Processor | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache |
| Memory | 8GB SO-DIMM RAM |
| Storage Device | 256GB M.2 |
| RAID Function | N/A |
| Intel vPro Support | N/A |
| TPM | TPM 2.0 |
| Power Supply | 12V/60W |
| OS Support | Windows 10 IoT LTSC, Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 15" TFT LCD |
| Resolution | 1024 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports |
| Parallel Port | via optional conversion cable through service window |
| Standard USB Port | USB 3.0 x 2+ USB 2.0 x 3 |
| PoweredUSB Port | N/A |
| OTG USB | N/A |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA x 1 (12V support for Posiflex monitors) |
| CR Port | RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer |
| PS2 Port | via optional conversion cable through service window |
| UPS Port | N/A |
| Audio | Buzzer x 1 Optional internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| Dimension (W x D x H in mm) | 372 x 252.7 x 320 |
| Weight (N. W. in kg) | 5.86 |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Built-In Options | |
| WiFi module | M.2 WiFi/BT module |
| Camera Module | N/A |
| Printer Module | N/A |
| AG Glass | N/A |
| Attachment Options | |
| POS Monitor | Non-touch TFT LCD: 7"/9.7" |
| Line Display | 2 x 20 rear-mount VFD customer line display |
| 7" color LCD graphical line display | |
| External UPS Pack for RT Series | N/A |
| Attachment | MSR iButton Rotatable 2D Scanner RFID Fingerprint Sensor Keypad |
1. What processor does the Posiflex PS-3615-G2 use?
The Posiflex PS-3615-G2 is powered by the Intel® Elkhart Lake Celeron J6412 processor, which operates at speeds up to 2.60 GHz with a 1.5M cache for enhanced performance.
2. Does the PS-3615-G2 support Wi-Fi?
Yes, the PS-3615-G2 comes with an M.2 WiFi/BT module for seamless wireless connectivity.
3. What operating systems are supported by this POS terminal?
The PS-3615-G2 supports Windows 10 IoT LTSC and Windows 11 IoT LTSC, offering flexible options for businesses running either version of Windows.
4. What is the display size and resolution?
The PS-3615-G2 features a 15" TFT LCD display with a 1024 x 768 resolution. It also supports True-flat PCAP touch with multi-touch functionality.
5. Can I expand the storage or memory on this POS terminal?
Yes, the PS-3615-G2 comes with 8GB of SO-DIMM RAM and 256GB of M.2 storage. It also has an M.2 expansion slot for additional storage upgrades.
6. Does the PS-3615-G2 support additional peripherals?
Yes, the PS-3615-G2 offers a wide range of I/O ports including DB9 x 3 serial ports, USB 3.0 x 2, USB 2.0 x 3, and a VGA port for monitor connections. It also supports peripheral devices like MSR iButton Rotatable 2D Scanner and RFID Fingerprint Sensor Keypad through attachment options.
7. Is the PS-3615-G2 suitable for use in harsh environments?
Yes, the PS-3615-G2 is designed for IP65 protection on the front panel, making it highly durable and suitable for use in retail environments that may face dust, moisture, and other challenges.
8. How much does the PS-3615-G2 weigh?
The PS-3615-G2 weighs 5.86 kg (net weight), making it a sturdy but manageable option for retail and business use.
9. What is the power supply requirement for the PS-3615-G2?
The PS-3615-G2 operates on a 12V/60W power supply.
10. Can I use the PS-3615-G2 with external POS monitors?
Yes, the PS-3615-G2 supports external POS monitors, including 7" or 9.7" non-touch TFT LCD monitors and a color graphical line display for customer-facing interactions.
11. Is the PS-3615-G2 equipped with TPM (Trusted Platform Module)?
Yes, the PS-3615-G2 comes with TPM 2.0 for enhanced security.
12. What are the environmental operating conditions for the PS-3615-G2?
The terminal operates in temperatures between 0°C to 40°C and humidity levels between 20% RH to 90% RH.
For any additional questions or assistance, feel free to reach out to our customer support team!
