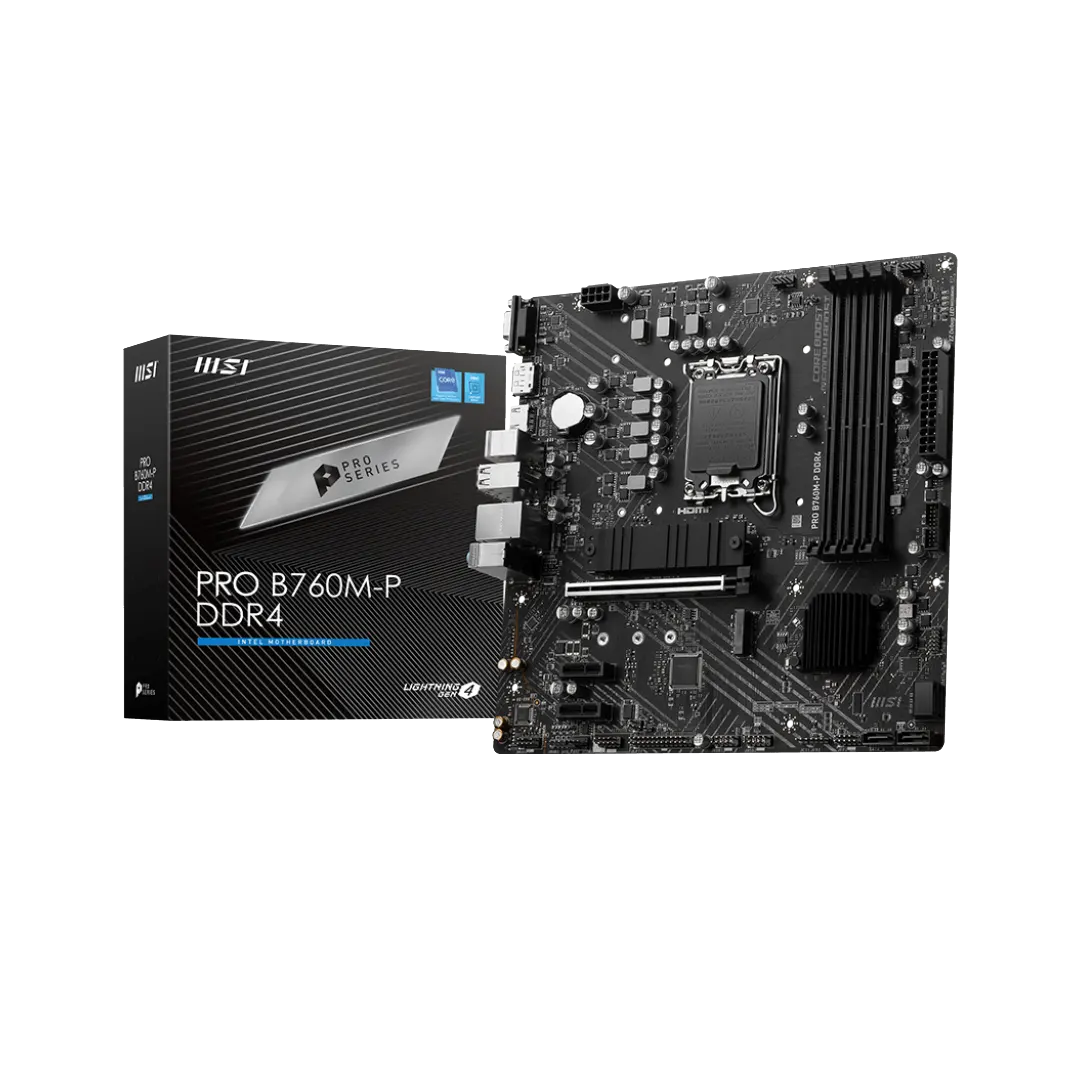

N.B. Image may vary with product
The MSI PRO B760M-P DDR4 mATX Gaming Motherboard is the ideal choice for gamers who demand the best in terms of performance and versatility. Designed for both 13th and 12th Gen Intel Core processors, this motherboard provides an unbeatable combination of speed and reliability. Whether you're an amateur or a professional gamer, the MSI PRO B760M-P DDR4 mATX Gaming Motherboard has everything you need to take your gaming experience to the next level.
The MSI PRO B760M-P DDR4 mATX Gaming Motherboard is packed with features that are specifically designed to enhance the gaming experience. Here are some of the key features that make this motherboard stand out:
One of the key features of the MSI PRO B760M-P DDR4 mATX Gaming Motherboard is its support for DDR4 memory, which provides faster load times and improved performance. This makes it possible for gamers to enjoy smooth, lag-free gaming, even when playing demanding games. In addition, the dual M.2 and U.2 ports provide fast storage options, making it easy to store and access large amounts of data.
Another key feature of the MSI PRO B760M-P DDR4 mATX Gaming Motherboard is its support for Intel Wi-Fi 6 and Bluetooth 5, which provide fast and stable wireless connections. This makes it possible for gamers to enjoy fast and smooth online gaming without any lag or interruptions.
The MSI PRO B760M-P DDR4 mATX Gaming Motherboard is also designed to provide versatile display options. With HDMI, DisplayPort and D-Sub video outputs, gamers can connect a variety of monitors and display options, making it easy to customize their gaming setup. In addition, the Thunderbolt 3 ports provide fast data transfer and charging capabilities, making it possible to transfer large amounts of data quickly and easily.
The MSI PRO B760M-P DDR4 mATX Gaming Motherboard is built to last, with military-grade components that ensure durability and stability. Whether you're an amateur or a professional gamer, this motherboard is designed to provide reliable performance and long-lasting durability.
Upgrade Your PC with MSI PRO B760-P WIFI DDR4 13th Gen & 12th Gen ATX Motherboard from Binary Logic - Bangladesh's Best Motherboard Shop.
Build your Desktop Computer From Binary Logic. Binary Logic is the best gaming pc, graphics pc, video editor pc, content creator pc builder in Bangladesh since 2001.
Here you will get intel desktop processor,desktop pc case
The latest price of MSI PRO B760M-P DDR4 mATX Gaming Motherboard 13th Gen And 12th Gen in Bangladesh is ৳ 17,000. You can buy the MSI PRO B760M-P DDR4 mATX Gaming Motherboard 13th Gen And 12th Gen, at the best price from our website or visit any your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers
| CHIPSET | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| MEMORY | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| ONBOARD GRAPHICS | Support HDMI™ 1.4, maximum resolution of 4K 30Hz* Support DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI™ 1x DisplayPort 1x VGA |
| EXPANSION SLOT | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| STORAGE | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | Realtek RTL8111H Gigabit LAN |
| AUDIO | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB DIMENSION | mATX 243.84mmx243.84mm |
P DDR4 mATX Gaming Motherboard supports 13th and 12th Gen Intel Core processors.
Does the MSI PRO B760M-P DDR4 mATX Gaming Motherboard support DDR4 memory? Yes, the MSI PRO B760M-P DDR4 mATX Gaming Motherboard supports DDR4 memory for faster load times and improved performance.
Does the MSI PRO B760M-P DDR4 mATX Gaming Motherboard support fast wireless connections? Yes, the MSI PRO B760M-P DDR4 mATX Gaming Motherboard supports Intel Wi-Fi 6 and Bluetooth 5 for fast and stable wireless connections.
Can the MSI PRO B760M-P DDR4 mATX Gaming Motherboard be used with a variety of display options? Yes, the MSI PRO B760M-P DDR4 mATX Gaming Motherboard has HDMI, DisplayPort, and D-Sub video outputs, making it possible to connect a variety of display options.
Is the MSI PRO B760M-P DDR4 mATX Gaming Motherboard built to last? Yes, the MSI PRO B760M-P DDR4 mATX Gaming Motherboard is built with military-grade components, ensuring durability and stability.
The MSI PRO B760M-P DDR4 mATX Gaming Motherboard is the ultimate solution for gamers who demand the best in terms of performance and versatility. With support for 13th and 12th Gen Intel Core processors, DDR4 memory, fast wireless connections, and versatile display options, this motherboard is designed to provide an unbeatable gaming experience. Whether you're an amateur or a professional gamer, the MSI PRO B760M-P DDR4 mATX Gaming Motherboard is a must-have for anyone looking to take their gaming experience to the next level.
