N.B. Image may vary with product
Are you looking for a motherboard that provides powerful performance, reliable stability, and a host of features?

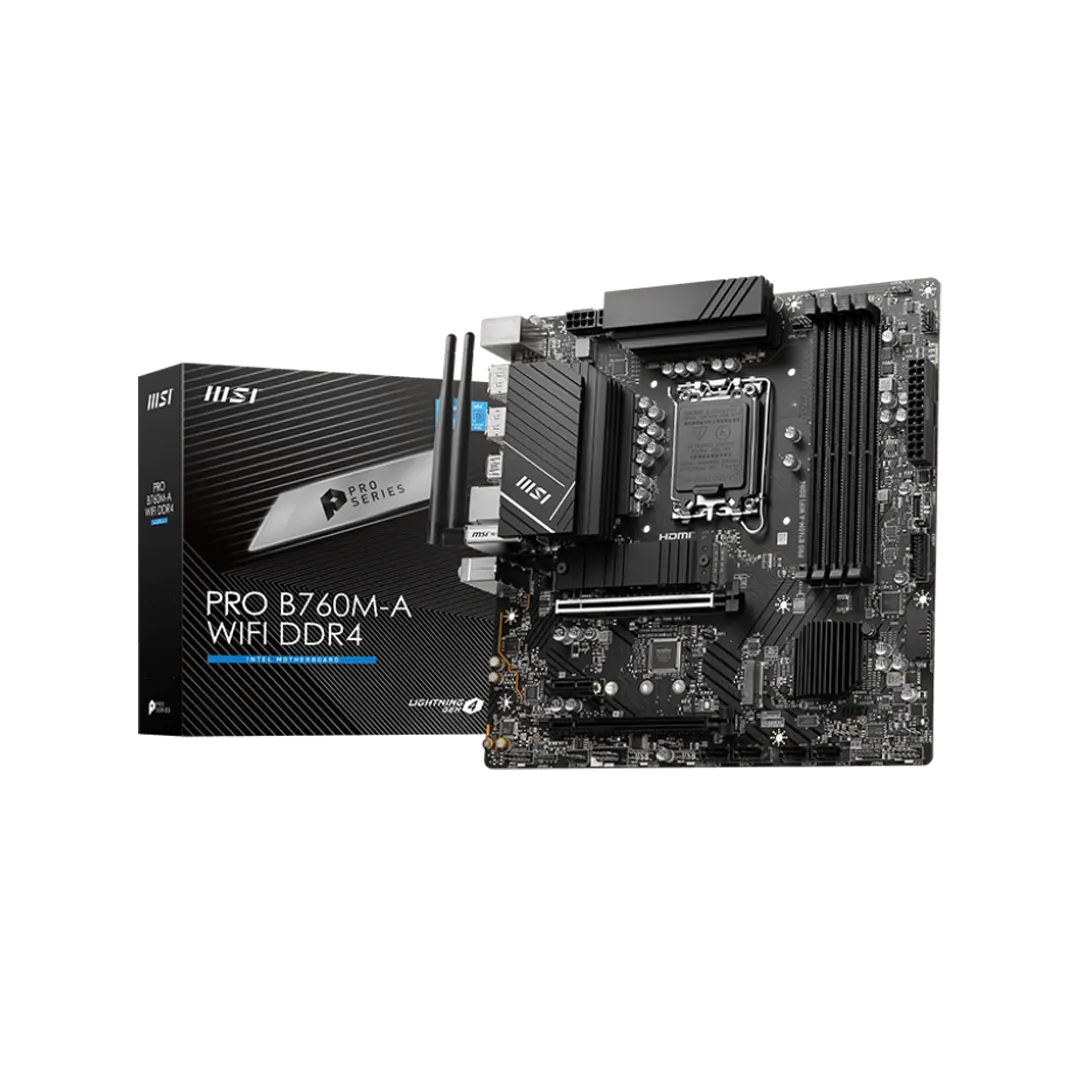

MSI PRO B760M-A WIFI DDR4 12th Gen & 13th Gen mATX Motherboard It's designed to support the latest 12th and 13th Gen Intel Processors (LGA1700) and up to 128GB of DDR4 RAM, allowing you to build a powerful and reliable system. Additionally, it features 2x M.2 slots, Intel Wi-Fi 6E, and 4x EZ Debug LED for easy troubleshooting. Plus, it's compatible with Windows 11 64-bit, and Windows 10 64-bit, and comes in an mATX form factor with dimensions of 243.84 mm x 243.84 mm.
Processor Compatibility: Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with LGA 1700 socket.
Memory: 4x DDR4 slots with a maximum capacity of 128GB. Overclockable to speeds up to 5333+ MHz. Supports Dual-Channel mode, non-ECC, un-buffered memory, and Intel Extreme Memory Profile (XMP).
Graphics: 2x HDMI ports supporting HDMI 2.1 and 2x DisplayPort supporting DP 1.4. Maximum resolution of 4K 60Hz. Available only on processors featuring integrated graphics.
Expansion Slots: 2x PCI-E x16 slots, 1x PCI-E x1 slot. PCIe 4.0 support for enhanced data transfer rates.
Storage: 2x M.2 slots supporting PCIe 4.0 x4, 4x SATA 6G ports. Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.

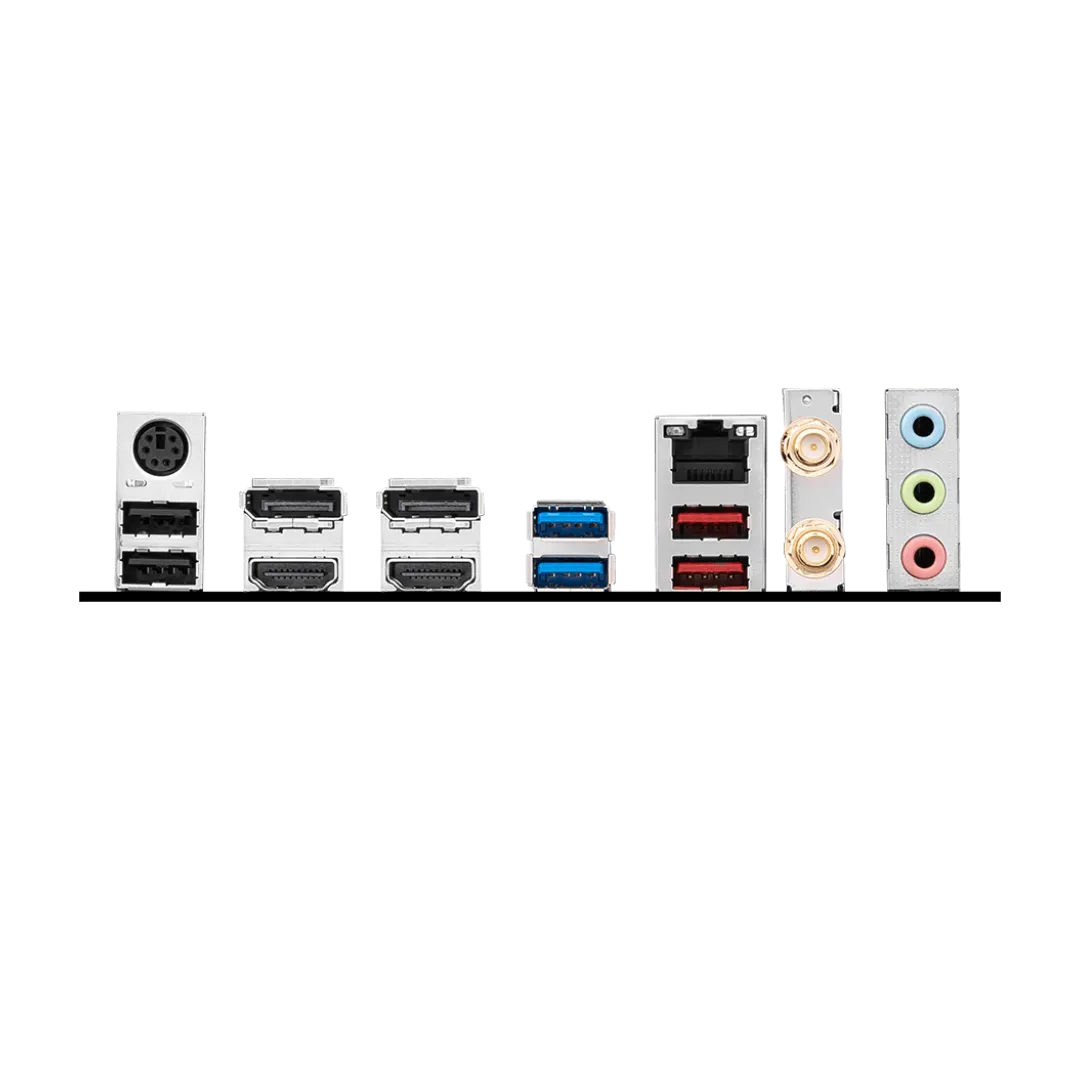

USB Ports: 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 4x USB 3.2 Gen1 Type A (Front), 1x USB 3.2 Gen1 Type C (Front), 2x USB 3.2 Gen2 Type A (Rear).
LAN & Wireless: Realtek RTL8125BG 2.5G LAN, Intel Wi-Fi 6E with MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps. Bluetooth 5.3 support.
Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio.
Internal I/O Ports: Various connectors for power, fans, audio, RGB, USB, and more. TPM Pin Header for TPM 2.0 support.
LED Feature: 4x EZ Debug LED for easy troubleshooting.
Operating System: Supports Windows 11 64-bit, Windows 10 64-bit.
PCB Dimension: Compact mATX form factor with dimensions of 243.84mm x 243.84mm.
The latest price of MSI PRO B760M-A WIFI DDR4 12th Gen & 13th Gen mATX Motherboard in Bangladesh is ৳ 21500. You can buy the MSI PRO B760M-A WIFI DDR4 12th Gen & 13th Gen mATX Motherboard, at the best price from our website or visit any your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers.
| CHIPSET | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| MEMORY | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| ONBOARD GRAPHICS | 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| LAN | Realtek RTL8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB DIMENSION | mATX 243.84mmx243.84mm |
Q: Can I use DDR3 memory with this motherboard?
A: No, this motherboard supports DDR4 memory only.
Q: What is the maximum overclocking frequency for DDR4 memory?
A: The maximum overclocking frequency for DDR4 memory is 5333+ MHz.
Q: Does it support Bluetooth 5.3?
A: Yes, Bluetooth 5.3 is supported and will be ready in Windows 10 Build 21H1 and Windows 11.
