Ultra-quiet Mobius fan improves airflow
Advanced heat dissipation
ATX 3.1 support & a durable 90° 12V-2x6 cable
Interleaved PFC design decreases power loss
80 Plus Platinum certification
12-year warranty

MOBIUS FAN ENHANCES THERMAL PERFORMANCE AND A LONGER LIFESPAN
SILENT FAN PERFORMANCE WITH A ZERO SPEED MODE
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
*All performance stats confirmed in 25°C ambient temperature testing.
ADVANCED HEAT DISSIPATION
CERTIFIED EFFICIENCY
An interleaved PFC decreases power loss and improves efficiency by inimizing current, reducing interference, and reducing output capacitor ripple current.
Durable Cable
FULLY MODULAR CABLING
| Specification | Details |
|---|---|

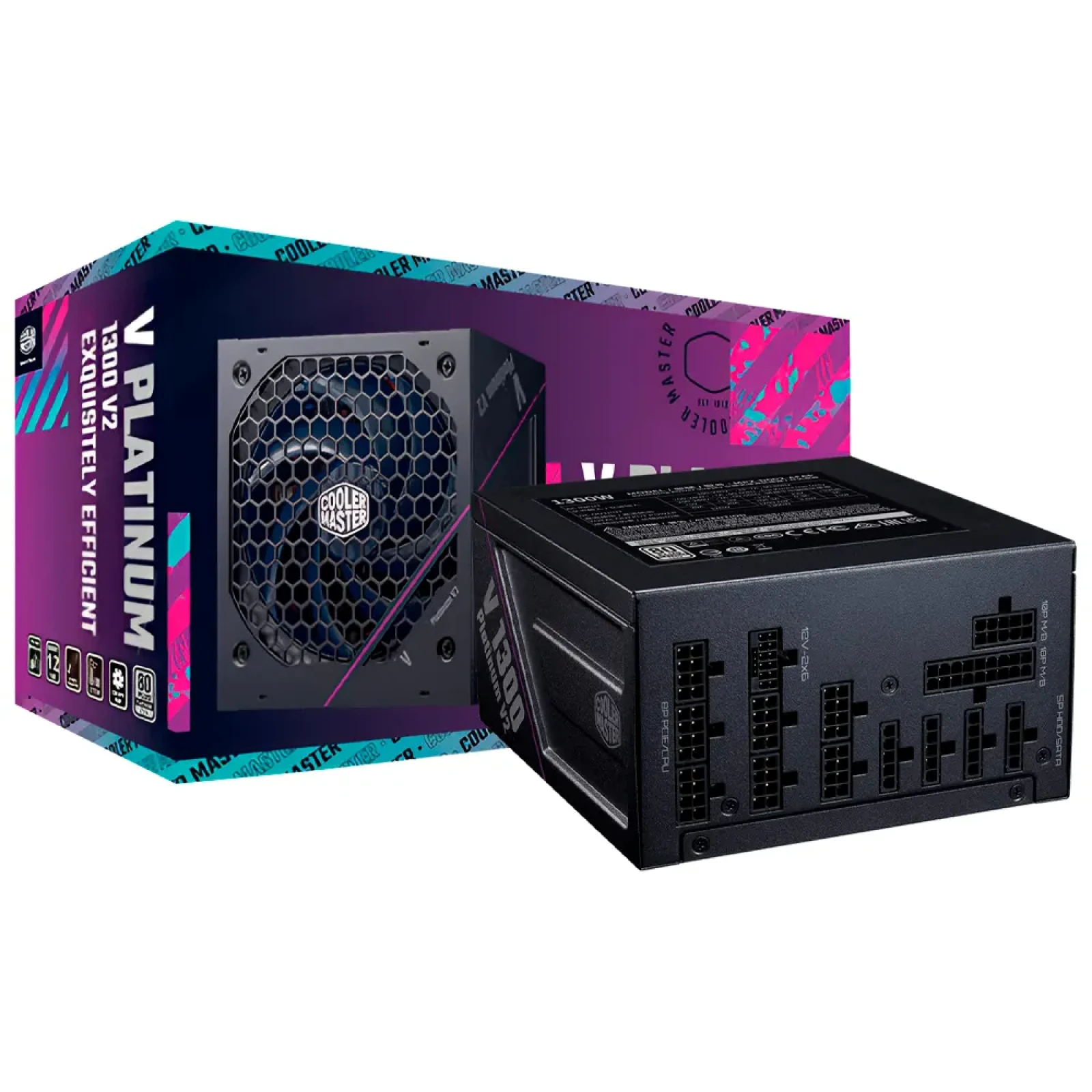

| Model | V Platinum 1300 V2 MPZ-D002-AFAP |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100&ndash240 V |
| Input Current | 15&ndash7 A |
| Input Frequency | 50&ndash60 Hz |
| Dimensions (L × W × H) | 160 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Bearing | LDB |
| Fan Speed | 2400 ± 10% RPM |
| Efficiency | &ge 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0&ndash50°C |
| Power Good Signal | 100&ndash150 ms |
| Hold Up Time | &ge 16 ms |
| MTBF | >100,000 Hours |
| Protections | OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Region-specific) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 16 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 5 |
| 12V-2x6 Connectors | 1 |
| Series | V Platinum Series |
| 80 Plus Efficiency | Platinum |
| Modular | Fully Modular |
| Category | Above 750W |
| Form Factor | ATX |
| Watts | 1300 W |
