N.B. Image may vary with product

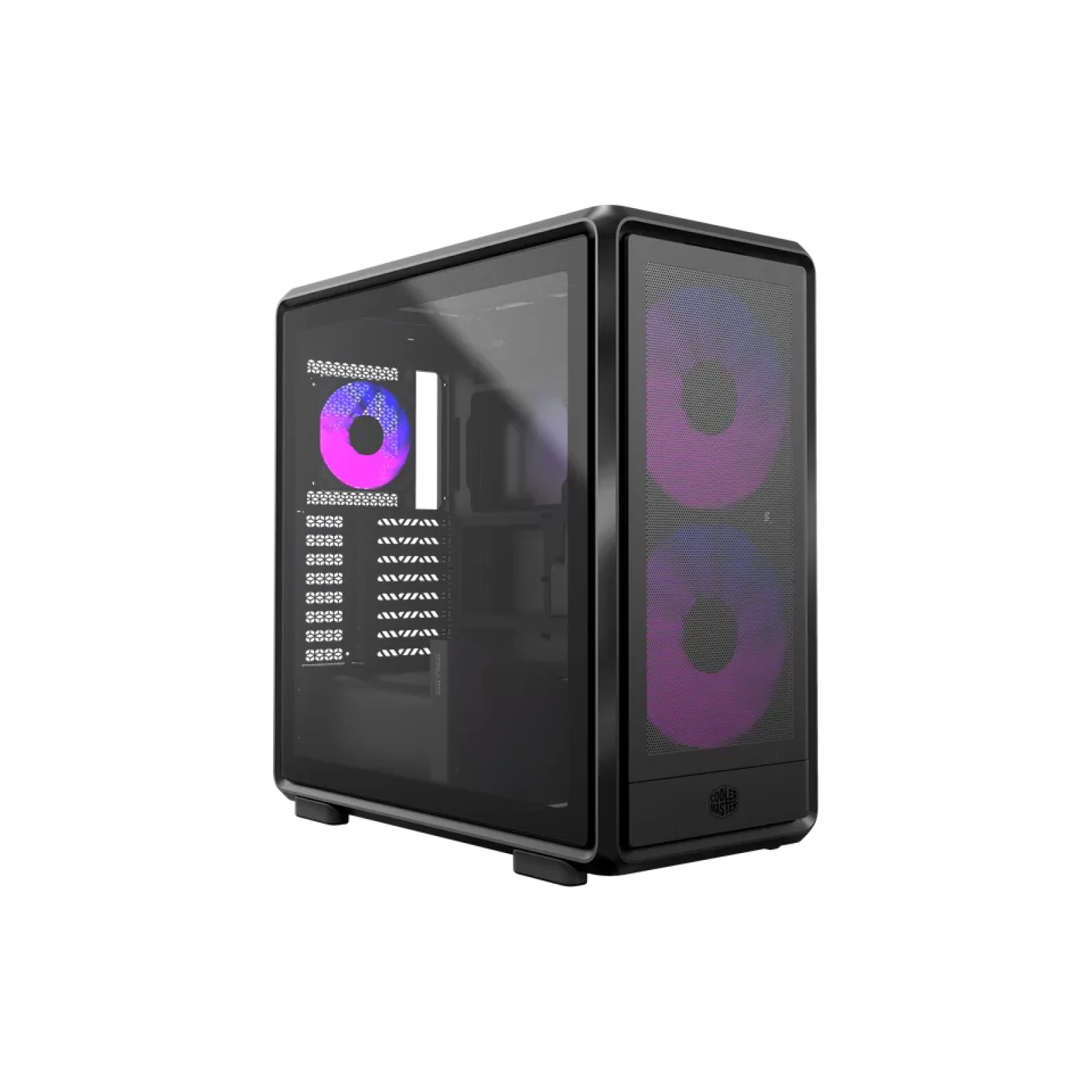

The MasterFrame 600 Mesh is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
Rear SickleFlow 120 ARGB PWM Fans,
Front Dual SickleFlow 200 ARGB PWM Fan,
Triple 360mm Radiator support,
Tempered Glass side,
USB 3.2 Type-C
FreeForm 2.0
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
| Specification | Details |
|---|---|
| Model Number | Black: MF600M-KGNN-S01 |
| Color(s) | Black |
| Exterior Materials | SGCC Steel, Aluminum |
| Side Panel Materials (Right / Left) | Tempered Glass / Aluminum |
| Dimensions (L × W × H) | 531 × 261 × 544 mm (Incl. Protrusions) 514 × 244 × 514 mm (Excl. Protrusions) |
| Volume | 73.6 Liters (Incl. Protrusions) |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX*, SSI-CEB* (*Conditional Support) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 8 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 0 |
| 2.5" / 3.5" Drive Bays (Combo) | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel &ndash USB Ports | 2 × USB 3.2 Gen 1 Type-A 1 × USB 3.2 Gen 2×2 Type-C |
| I/O Panel &ndash Audio | 1 × 3.5mm Headset Jack (Audio + Mic) |
| Pre-installed Fans (Front) | 2 × SickleFlow 200 ARGB |
| Pre-installed Fans (Top) | N/A |
| Pre-installed Fans (Rear) | 1 × SickleFlow 120 ARGB |
| Fan Support &ndash Front | 3 × 120mm, 3 × 140mm, 2 × 180mm, 2 × 200mm |
| Fan Support &ndash Top | 3 × 120mm, 2 × 140mm, 2 × 180mm, 1 × 200mm |
| Fan Support &ndash Rear | 1 × 120mm |
| Fan Support &ndash Side | 3 × 120mm, 3 × 140mm |
| Radiator Support &ndash Front | 120 / 140 / 240 / 280 / 360 / 420 mm |
| Radiator Support &ndash Top | 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to front panel) |
| Radiator Support &ndash Rear | 120 mm |
| Radiator Support &ndash Side | 240 / 280 / 360 / 420 mm |
| Dust Filters | Top, Front, Bottom, Right Side Panel |
| CPU Cooler Clearance | 190 mm |
| PSU Clearance | 235 mm |
| Graphics Card Clearance | L: 485 mm (incl. power connector) H: 190 mm (incl. power connector) |
| Cable Routing Space | 43 mm (Behind Motherboard Tray) |
| Included Accessories | GPU Support Bracket, ARGB PWM Hub |
