N.B. Image may vary with product

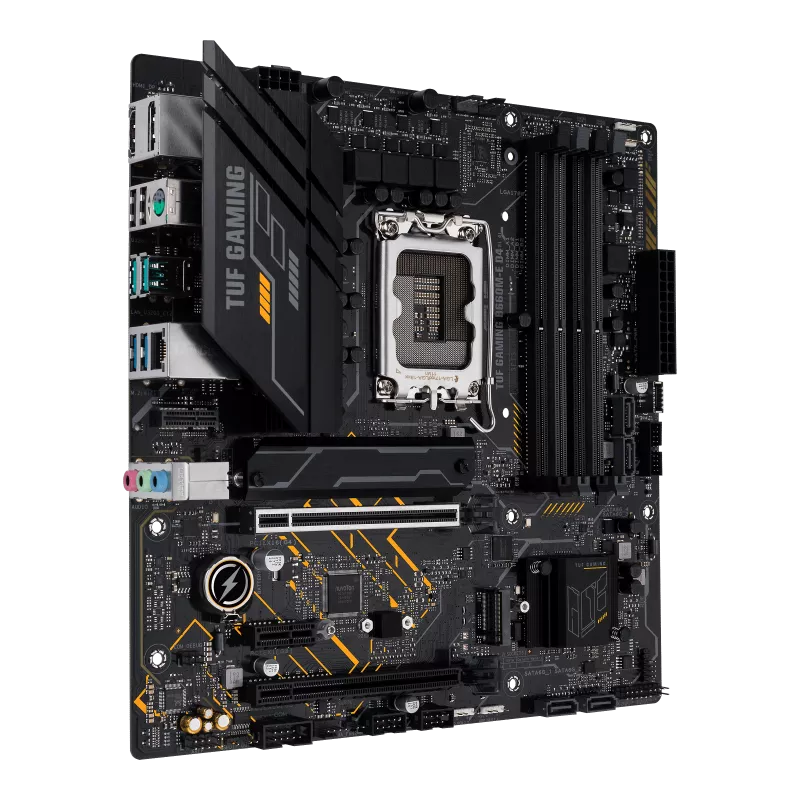

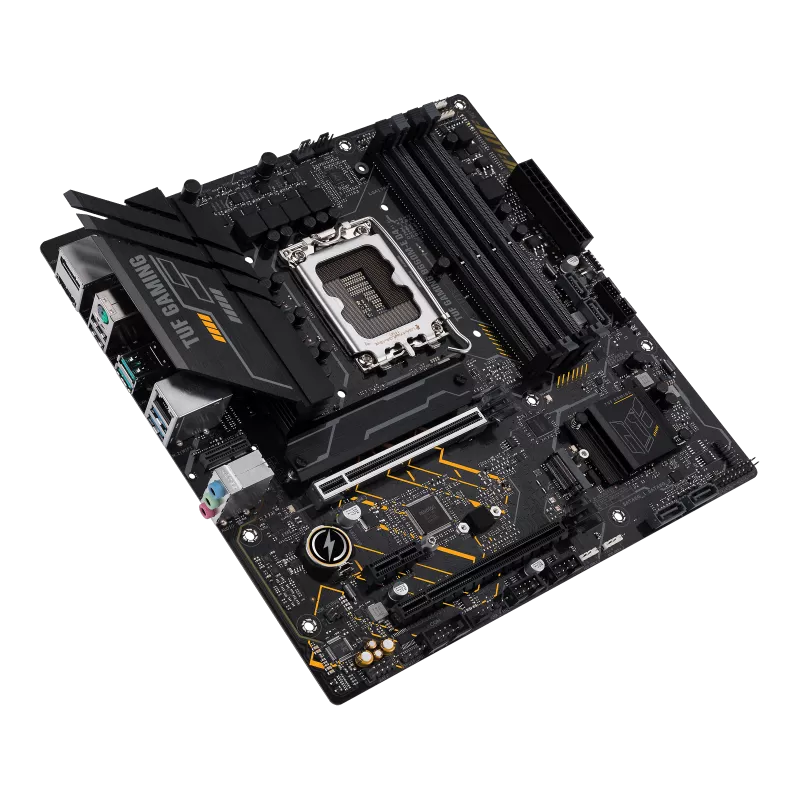

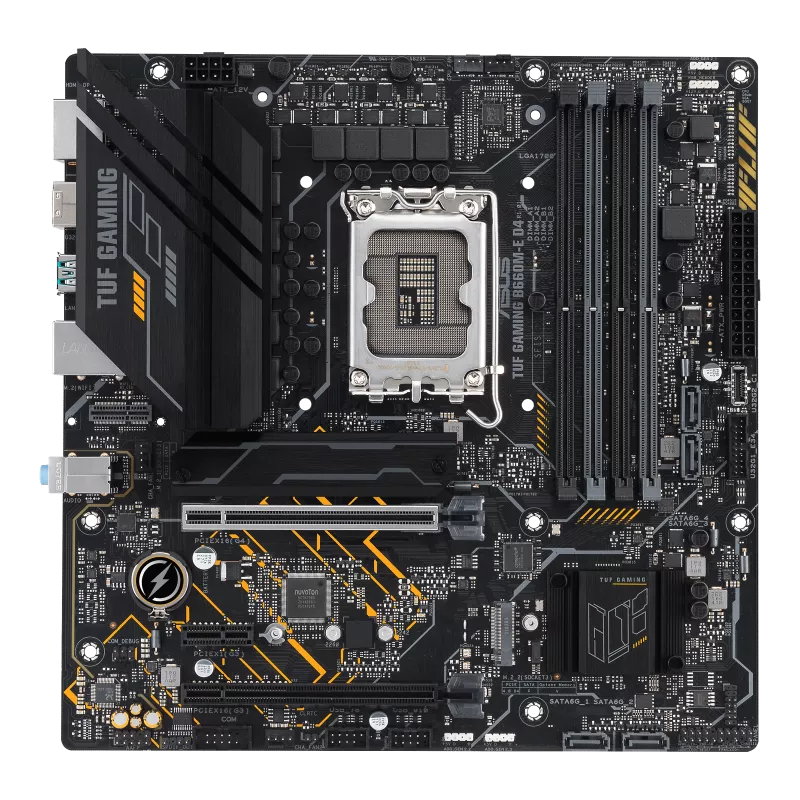

If so, the ASUS TUF GAMING B660M-E D4 LGA 1700 mATX 12TH GEN GAMING MOTHERBOARD is a great option. This motherboard features a PCIe 4.0 slot, two PCIe 4.0 M.2 slots, 10 Power stages, Realtek 2.5Gb Ethernet, DP, HDMI, front USB 3.2 Gen 2 Type-C, and Aura Sync.
The ASUS TUF GAMING B660M-E D4 LGA 1700 mATX 12TH GEN GAMING MOTHERBOARD is a great option for gamers who are looking for a durable and powerful motherboard. This motherboard features a PCIe 4.0 slot, two PCIe 4.0 M.2 slots, 10 Power stages, Realtek 2.5Gb Ethernet, DP, HDMI, front USB 3.2 Gen 2 Type-C, and Aura Sync.
The ASUS TUF GAMING B660M-E D4 LGA 1700 mATX 12TH GEN GAMING MOTHERBOARD is a great option for gamers who are looking for a durable and powerful motherboard. This motherboard features a PCIe 4.0 slot, two PCIe 4.0 M.2 slots, 10 Power stages, Realtek 2.5Gb Ethernet, DP, HDMI, front USB 3.2 Gen 2 Type-C®, and Aura Sync.
This motherboard works with the latest generation of processors and graphics cards. It also works with the latest generation of M.2 SSDs. This motherboard is also compatible with the latest generation of monitors, TVs, and laptops.
The latest Special Cash price of ASUS TUF GAMING B660M-E D4 LGA 1700 mATX 12TH GEN GAMING MOTHERBOARD in Bangladesh is ৳16,500 You can buy the ASUS TUF GAMING B660M-E D4 LGA 1700 mATX 12TH GEN GAMING MOTHERBOARD at the best price from our website Binary Logic or visit any of our showrooms. Follow us on Facebook For Regular updates & offers.
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Support 4K@60Hz as specified in DisplayPort 1.4. ***Support 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot * Supports Intel® Optane Memory H Series on PCH-attached PCI-E slot |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Ethernet | TUF LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB | 2 x USB 3.2 Gen 2 ports (Type-A) 2 x USB 3.2 Gen1 ports (Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ALC897 Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Power pre-regulator reduces power input noise to ensure consistent performance Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x V-M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
Fan and Cooling related |
| Special Features | ASUS TUF PROTECTION DIGI+ VRM Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution Flexible M.2 heatsink VRM heatsink design ASUS EZ DIY Box Headers ProCool SafeDIMM AURA Sync AURA RGB header Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armory Crate AURA Creator AURA Sync Fan Xpert 2+ Two-Way AI Noise Cancelation AI Suite 3 Performance And Power Saving Utility TurboV EVO EPUB DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | microATX 24.4cm x 24.4cm |
